Currently awaiting original style drawing.

GILBERT "TONE REFLECTOR"
"The instrument that amazes the World"

Model No 85 (Oak)
Oak console model with single sliding door.

CABINET:--Oak cabinet with large single slatted sliding door for volume control.
MOTOR:-- The famous Garrard, double spring. Plays two records with one winding. 12" plush covered turntable.
TONE ARM:-- The unrivalled Gilbert amplifying arm, specially designed to produce great volume with perfect definition of tone without distortion. Reg No: 721931 and pat. No: 266936
AMPLIFIER:-- All metal deep tone reflecting amplifier, producing the widest range of notes and giving perfect definition of tone. Reg No: 721971
SOUNDBOX:-- Gilbert Tone Reflector, specially designed for use with the new electrical recording process of records. Pro-Pat. No's 2380 and 2381.
NEEDLE CUPS:-- Two Gilbert needle cups which are of new design with electro-gilt bowls for unused needles and one nickel-plated for used needles. Reg No: 721972
MEASUREMENTS:-- Height 33-ins Width 21-ins Length 34-ins
CASH PRICE - - 15 Guineas

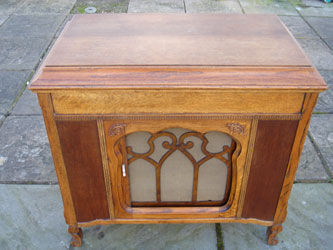

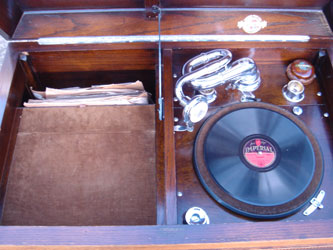

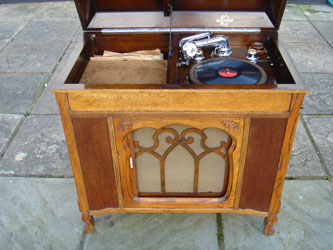

Below are some recent pictures of a Model 85 from my collection.
